Home Products Straight Dish end
Jack Daniel
Jack Daniel
COD not available

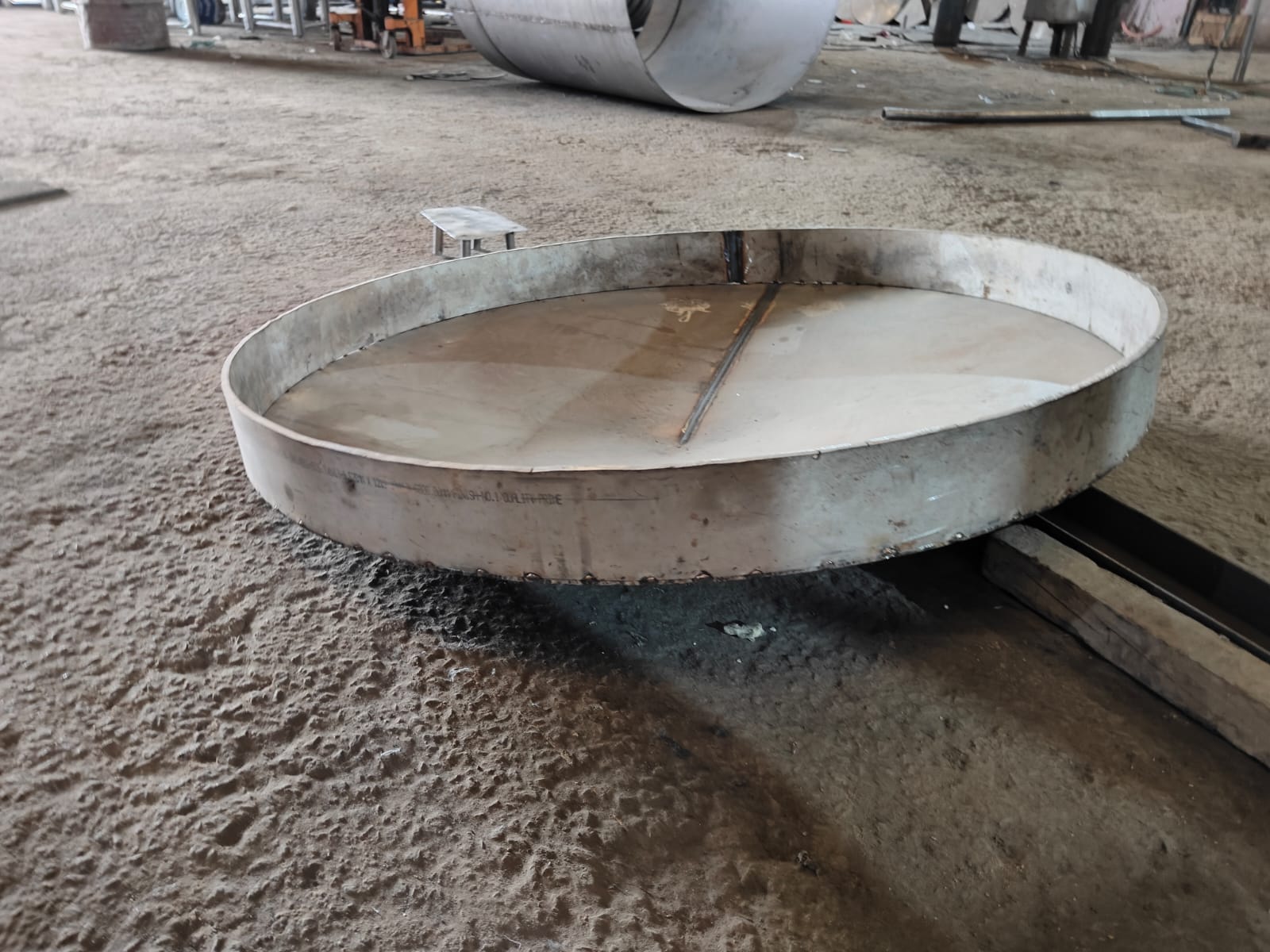

Dished-end by Jack Daniel Engineers

Straight Dish end

Share with
Share this on :

Description

Product details

A straight dished end, also known as a tori spherical head or flanged and dished head, is a type of end cap used to close the ends of pressure vessels, boilers, and storage tanks. These heads are characterized by their distinctive shape: a flat circular section known as the straight flange at the outer perimeter, combined with a dished (curved) section that forms the majority of the head's surface. This combination of straight and dished sections helps distribute pressure and stresses evenly, making straight dished ends suitable for high-pressure applications.

Keywords

  • Filter tags

Other Products

Related Products

Microbrewery tanks are specialized vessels designed for small-scale beer production, ideal for craft breweries. At Jack Daniel Engineers (website: www.jackdanielengineers.com), these tanks are crafted with precision to ensure quality and consistency in brewing. Each tank is made from high-grade stainless steel, providing durability, resistance to corrosion, and maintaining the purity of the brewing process. Features of Microbrewery Tanks by Jack Daniel Engineers: 1. Temperature Control: Essential for brewing consistency. 2. Stainless Steel Construction: Ensures product purity. 3. Customization Options: Tailored to fit specific brewing capacities. Visit Jack Daniel Engineers for more on their microbrewery tanks, designed to meet the unique needs of craft brewers.
View Details
Micro Brewery Storage Tanks
Shell and Tube Heat Exchangers are one of the most commonly used heat exchangers in industries like petrochemical, power generation, pharmaceuticals, and more. They are ideal for applications where high pressures or temperatures are involved and can efficiently transfer heat between two fluids. How They Work A shell and tube heat exchanger consists of a series of tubes enclosed within a cylindrical shell: Tube Bundle: A set of tubes through which one fluid flows. These tubes can be straight or U-shaped, depending on the design. Shell: Surrounding the tube bundle, the shell holds the other fluid. The fluids flow through the exchanger in two different streams: Tube Side: The fluid in the tube bundle flows inside the tubes. Shell Side: The fluid outside the tubes (inside the shell) flows around the tubes. Heat is exchanged as one fluid moves through the tubes and the other flows around them in the shell. Heat transfer happens through the tube walls, either heating or cooling the fluids depending on the process requirements. Types of Shell and Tube Heat Exchangers Fixed Tube Sheet: Tubes are welded to the end sheets, which keeps them stationary. This type is simple but doesn't allow for much expansion and contraction of the tubes due to temperature changes. Floating Head: One end of the tube bundle can expand and contract, allowing for thermal expansion and easier maintenance. U-Tube Design: Tubes are U-shaped, which accommodates expansion and contraction, but cleaning the tubes can be challenging. Key Applications Petrochemical and Refining: Cooling and heating of hydrocarbons, separation of gases and liquids. Power Plants: Steam generation and condensation, especially in nuclear and thermal plants. Pharmaceuticals and Food Processing: Heating or cooling sensitive materials that require sanitary conditions. Benefits of Shell and Tube Heat Exchangers High Efficiency: Allows for a large heat exchange area in a compact space. Adaptability: Can handle a wide range of temperatures and pressures. Durability: Typically made from materials like stainless steel or alloys, they withstand harsh conditions and chemical exposure. Ease of Maintenance: Some designs, especially the floating head type, make it easier to clean and maintain.
View Details
Heat Exchangers Shell and Tube Type
Stainless Steel Jacketed Chemical Reactor is a specialized vessel used for chemical reactions where temperature control is essential. The stainless steel construction provides excellent corrosion resistance, while the jacketed design allows for heating or cooling of the reactor contents by circulating fluids such as water, oil, or steam through the external jacket. This system is widely used in industries like pharmaceuticals, petrochemicals, and food processing to ensure consistent temperature management during production. A Stainless Steel Jacketed Chemical Reactor is designed to facilitate chemical reactions under controlled temperature conditions. Key features include: 1. Material: Made of stainless steel (SS 304/316) for high corrosion resistance and durability. 2. Jacket: An outer layer (jacket) circulates heating or cooling fluid (water, oil, or steam) to regulate the reactor's internal temperature. 3. Application: Used in industries such as pharmaceuticals, chemicals, food processing, and cosmetics. 4. Design: Typically includes features like an agitator, pressure/temperature controls, and can be customized based on requirements.
View Details
Stainless Steel Jacketed Chemical Reactor
